19-26AWG Red UR2 Butt Connector

Name: 1926AWG Red UR2 Butt Connector
Brand: DOWELL
Price: 1 USD

Buy cheap 19-26AWG Red UR2 Butt Connector product

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : DW-5023

Supply Ability : 100000 PCS Per 7 Days

MOQ : 10000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Accessory Type : Butt

Maximum Insulation : 2.08mm (0.082”)

Color Identification : Amber

AWG (mm²) Wire Range : 0.9-0.4 mm (19-26AWG) cable

Carton Size : 45x28.5x22cm

Carton G.W. : 11.6kg(25.6 lbs.)/cs

Contact Now

19-26AWG Red UR2 Butt Connector

UR2 solvent resistant connectors reduce the splicing bundle O.D. to a minimum. Their two ports accept two solid copper conductors that can be of different wire gauges. Factory insertedsealant insulates the connections, protects against corrosion, and seals out moisture. The UR2 Connector is easily installed and crimped by using our DW-8021 Connector Crimping Plier.

Specification:

Accessory Type	Butt	Special Feature	Gel-filled for moisture resistance
Maximum Insulation	2.08mm (0.082”)	AWG (mm²) Wire Range	0.9-0.4 mm (19-26AWG) air core 0.65-0.4mm (22-26AWG) filled cable
Color Identification	Amber

Application:

1. Splicing
2. Voice
3. Data
4. Premise Wiring

Package:

Packing: 100pcs/bag, 1000pcs/box, 10000pcs/cs.

Size: 45*28.5*22cm

G.W.: 11.6kg(25.6 lbs.)/cs.

3M Telecom Connection System:

Product Tags:

26awg wire butt splice

26awg butt connector

red wire butt splice

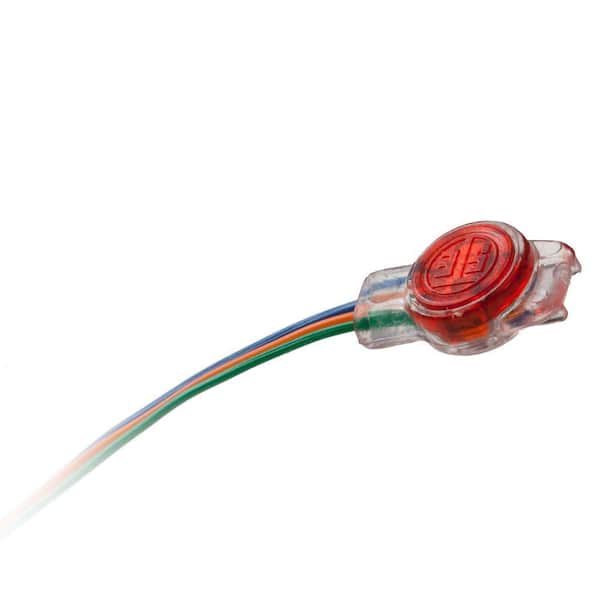

19-26AWG Red UR2 Butt Connector Images
